Flexible modular design
62 standard sizes and multiple functional cell combinations to match each project precisely.
HEROS
Modular air handling units for hygienic, comfort and industrial applications.
- 0standard sizes
- 0functional modules
- 0mmrock-wool panels
- 0EN 1886 · ISO 9001 · CE · Eurovent
01Overview
Energy efficiency at
the core of every module.

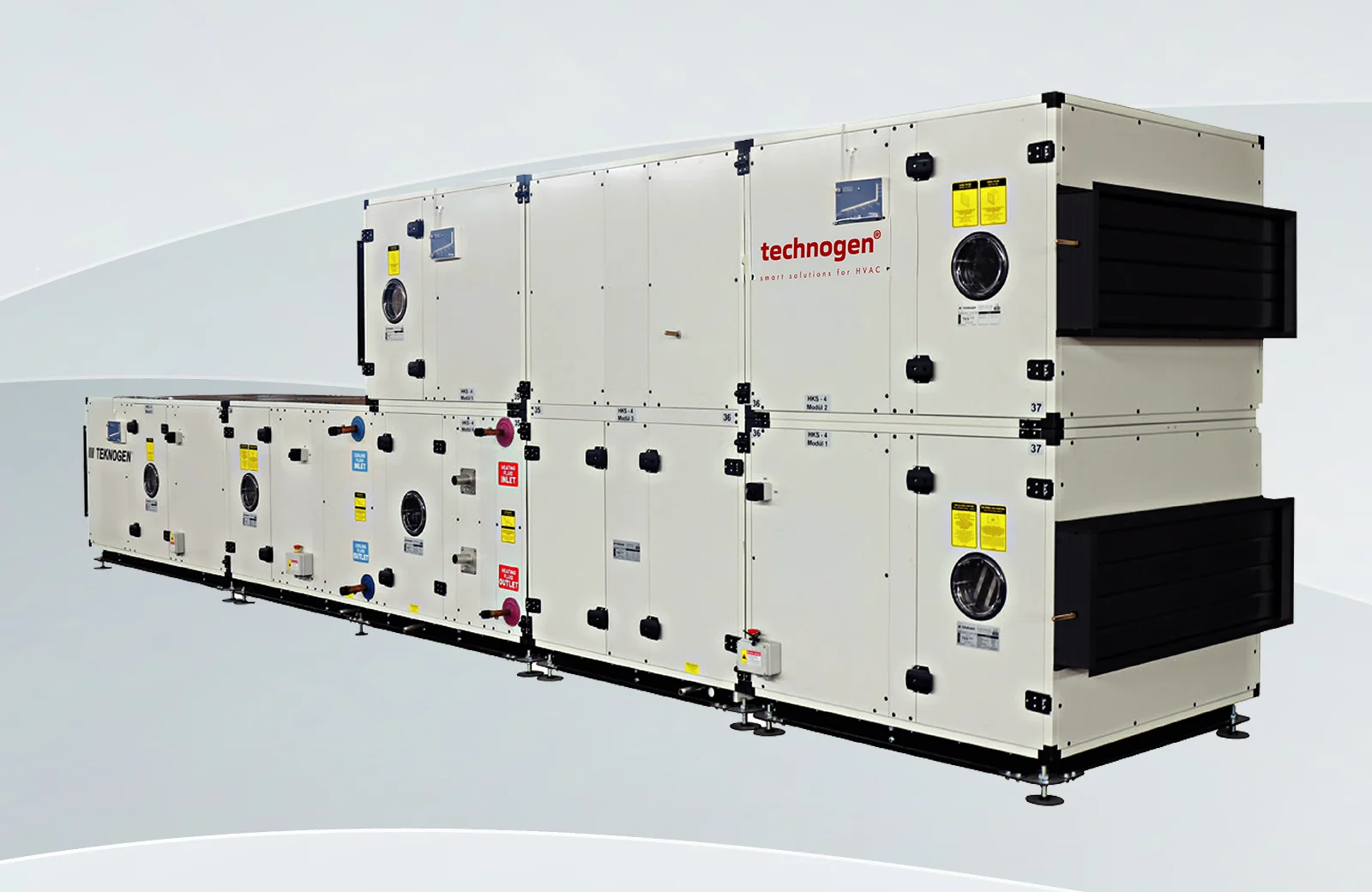

Technogen HEROS air handling units are developed by the Technogen R&D team to deliver high-performance, energy-efficient and reliable air management for hygienic, comfort and industrial applications.
Specialised panel and body construction minimises thermal bridging, while the modular structure makes transport, installation, maintenance and dismantling straightforward.
Superior insulation
50 mm rock-wool insulated panels provide excellent thermal and acoustic insulation and long service life.
Wide range of filters
Panel, bag, compact, activated-carbon and HEPA filters for comfort, hygienic and clean environments.
Heat recovery systems
Rotary, plate and glycol-circuit exchangers for maximum efficiency in every application.
Advanced fans & motors
EC plug fans with VFD integration for precise airflow control at low noise.
Automation & control
Optional smart-building integration, remote monitoring and optimised performance.
EN
1886
1886
Casing performance
Air tightness, thermal and mechanical performance.
ISO
9001
9001
Quality management
Certified, documented production processes.
CE
European conformity
Health, safety and environmental requirements met.
EURO
VENT
VENT
Certified performance
Independently verified performance ratings.
02Anatomy
Built to be opened,
serviced and trusted.
Select a point on the unit to see how HEROS is put together.
50 mm rock-wool insulated panels, with panel and body construction designed to minimise thermal bridging and noise breakout.
Access doors and inspection windows give service teams direct, safe access to fans, filters and coils.
Clearly marked heating and cooling coil connections for fast, error-free installation on site.
Supply and extract openings with dampers, configured to the airflow arrangement of each project.
Units are built from modular sections on a base frame for easy transport, installation and dismantling.
03Configure
Build your unit from
19 functional modules.
Start from a typical arrangement, then add or remove modules. Send the airflow sequence to our engineers for a full selection.
Start from
Heat recovery
Outdoor
air
air
Intake damper
Panel filter
Bag filter
Rotary wheel
Heating coil
Cooling coil
Humidifier
EC plug fan
Silencer
HEPA filter
Supply
air
air
Representative selection. The full set of 19 HEROS functional modules, with dimensions and performance for every size, is in the technical catalogue.
04Heat recovery
Three ways to
recover energy.
HEROS integrates rotary, plate and glycol-circuit heat recovery — matched to each project's hygiene and efficiency requirements.
Rotary wheel
A slowly rotating heat wheel passes alternately through the extract and supply airstreams — storing energy from the outgoing air and releasing it into the incoming air.
Compact, with high recovery in a small footprint.
- 80%max. efficiency
- 40–80%humidity transfer
Humidity transfer is around 40% with a condensation rotor, up to 60% with silica-gel coating and up to 80% with zeolite coating. A sweeping cell turns return air back before it can mix with fresh air.
Well suited to
Plate exchanger
Thin plates form separate channels for the two airstreams, which exchange heat across the plate surfaces without mixing.
No moving parts and simple maintenance — a natural fit where airstream separation matters.
- 70%of the thermal load recovered
An optional bypass damper gives free cooling; a drain pan collects condensate on the exhaust side.
Well suited to
Glycol circuit
Separate coils in the extract and supply airstreams are linked by a pumped water–glycol loop that carries heat between them.
Supply and extract sections can be installed apart, with no contact between the airstreams.
Well suited to
05Construction
Inside the casing,
component by component.
Materials, components and options as specified in the HEROS technical catalogue.
Casing
- Frame
- Anodised aluminium profiles
- Panels
- 50 mm double skin, flush inside and out
- Insulation
- Rock wool, 70 kg/m³
- Inner skin
- 0.9 mm galvanised steel (275 g/m²) or stainless steel
- Outer skin
- Painted RAL 9002, or stainless steel
- Thermal bridging
- Gaskets separate the inner and outer skins; panels join directly, without intermediate profiles
- Fixings
- Corrosion-resistant screws, sealed inside and capped outside
- Base
- A support foot under every module, with lifting and connection points
Fans and motors
- Fans
- Forward-curved, backward-curved or aerofoil plug fans; EC fans
- Drives
- VFD with sine filter, shielded cables and motor protection
- Mounting
- Fan and motor on spring isolators; horizontal or vertical fan inlet; motor outside the casing on request
- Options
- Observation window, internal lighting, belt-fault detection, constant-flow kit for plug fans
Coils and heaters
- Media
- Water or refrigerant (DX) for cooling; water or steam for heating
- Build
- Copper tubes with aluminium fins; copper fins optional; steel on request
- Standard
- Air vents on water coils; bypass plates stop air passing round the coil
- Drop eliminator
- Fitted when the air velocity on the cooling coil exceeds 2.5 m/s
- Electric heaters
- Safety thermostats; can be supplied with their own control panel
Humidifiers
- Steam
- Electric, microprocessor-controlled, 5–180 kg/h at 230–400 V; on/off or proportional
- Pad
- Cellulose pad, with a drop eliminator above 2.5 m/s
Dampers
- Blades
- Aerofoil, opposed-blade, painted aluminium, with gaskets
- Control
- Manual as standard; motorised, on/off or proportional, as an option
- Sections
- Intake with one damper; mixing with two or three dampers; filters can be fitted in damper sections
Filters
- Panel
- Pleated, G2–G4; washable or grease-retaining versions optional
- Bag
- 300 mm pockets; 600 mm optional
- Compact
- 292 mm long, an alternative to bag filters
- Activated carbon
- Cylindrical cartridges for odours and vapours
Silencer noise reduction
Three standard silencer lengths. Noise reduction in dB per octave band, as published in the HEROS catalogue.
| Length | 63 Hz | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | 8000 Hz |
|---|---|---|---|---|---|---|---|---|
| 600 mm | 4 | 8 | 15 | 15 | 17 | 12 | 9 | 6 |
| 900 mm | 6 | 12 | 22 | 22 | 24 | 23 | 13 | 9 |
| 1200 mm | 7 | 15 | 27 | 28 | 29 | 29 | 19 | 12 |
06Specifications
Technical overview.
- Product type
- Modular air handling unit (AHU)
- Standard sizes
- 62
- Functional modules
- 19 — filtration, heating & cooling coils, humidifiers, silencers and heat recovery
- Casing
- Double-skin panels, 50 mm rock-wool insulation; construction minimises thermal bridging
- Filtration
- Panel, bag, compact, activated carbon, HEPA
- Heat recovery
- Rotary wheel, plate exchanger, glycol circuit
- Fans & motors
- EC plug fans with VFD integration
- Controls
- Optional automation, smart-building integration, remote monitoring
- Applications
- Hospitals, commercial buildings, industrial facilities, clean environments
- Certification
- EN 1886 · ISO 9001 · CE · Eurovent
07Model data
Catalogue figures,
at a glance.
As published in the HEROS technical catalogue.
| Model | Height (H)mm | Width (W)mm | Cooling coilmm | DX coilmm | Plate heat recoverymm | Mixing box with dampermm | Air inlet / outletmm |
|---|---|---|---|---|---|---|---|
| HRS 4 X 4 | 912 | 712 | 559 | 559 | 1,018 | 1,171 | 559 |
| HRS 4 X 6 | 912 | 1,018 | 559 | 559 | 1,018 | 1,171 | 559 |
| HRS 4 X 8 | 912 | 1,324 | 559 | 559 | 1,018 | 1,171 | 559 |
| HRS 6 X 6 | 1,218 | 1,018 | 559 | 559 | 1,018 | 1,171 | 559 |
| HRS 6 X 8 | 1,218 | 1,324 | 559 | 559 | 1,018 | 1,171 | 559 |
| HRS 6 X 10 | 1,218 | 1,630 | 559 | 559 | 1,018 | 1,171 | 559 |
| HRS 6 X 12 | 1,218 | 1,936 | 559 | 559 | 1,018 | 1,171 | 559 |
| HRS 8 X 8 | 1,524 | 1,324 | 559 | 712 | 1,171 | 1,171 | 559 |
| HRS 8 X 10 | 1,524 | 1,630 | 559 | 712 | 1,018 | 1,171 | 559 |
| HRS 8 X 12 | 1,524 | 1,936 | 559 | 712 | 1,171 | 1,171 | 559 |
| HRS 8 X 16 | 1,524 | 2,548 | 559 | 712 | 1,477 | 1,171 | 559 |
| HRS 10 X 10 | 1,830 | 1,630 | 559 | 712 | 1,477 | 1,630 | 712 |
| HRS 10 X 12 | 1,830 | 1,936 | 559 | 712 | 1,477 | 1,324 | 712 |
| HRS 10 X 14 | 1,830 | 2,242 | 559 | 712 | 1,171 | 1,324 | 712 |
| HRS 10 X 16 | 1,830 | 2,548 | 559 | 712 | 1,171 | 1,324 | 712 |
| HRS 10 X 18 | 1,830 | 2,854 | 559 | 712 | 1,171 | 1,324 | 712 |
| HRS 10 X 20 | 1,830 | 3,160 | 559 | 712 | 1,477 | 1,630 | 712 |
| HRS 12 X 12 | 2,136 | 1,936 | 559 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 12 X 14 | 2,136 | 2,242 | 559 | 712 | 1,477 | 1,783 | 1,018 |
| HRS 12 X 16 | 2,136 | 2,548 | 559 | 712 | 1,477 | 1,630 | 1,018 |
| HRS 12 X 18 | 2,136 | 2,854 | 559 | 712 | 1,477 | 1,630 | 1,018 |
| HRS 12 X 20 | 2,136 | 3,160 | 559 | 712 | 1,783 | 2,242 | 1,018 |
| HRS 12 X 22 | 2,136 | 3,466 | 559 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 12 X 24 | 2,136 | 3,772 | 559 | 712 | 1,171 | 1,936 | 1,018 |
| HRS 14 X 14 | 2,442 | 2,242 | 712 | 712 | 1,783 | 2,395 | 1,171 |
| HRS 14 X 16 | 2,442 | 2,548 | 712 | 712 | 1,783 | 2,395 | 1,171 |
| HRS 14 X 18 | 2,442 | 2,854 | 712 | 712 | 1,783 | 2,242 | 1,018 |
| HRS 14 X 20 | 2,442 | 3,160 | 712 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 14 X 22 | 2,442 | 3,466 | 712 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 14 X 24 | 2,442 | 3,772 | 712 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 14 X 26 | 2,442 | 4,078 | 712 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 14 X 28 | 2,442 | 4,384 | 712 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 16 X 16 | 2,748 | 2,548 | 712 | 712 | 2,548 | 2,548 | 1,324 |
| HRS 16 X 18 | 2,748 | 2,854 | 712 | 712 | 1,783 | 2,395 | 1,171 |
| HRS 16 X 20 | 2,748 | 3,160 | 712 | 712 | 1,477 | 2,242 | 1,018 |
| HRS 16 X 22 | 2,748 | 3,466 | 712 | 712 | 1,783 | 2,242 | 1,018 |
| HRS 16 X 24 | 2,748 | 3,772 | 712 | 712 | 1,783 | 1,936 | 1,018 |
| HRS 16 X 26 | 2,748 | 4,078 | 712 | 712 | 1,783 | 2,242 | 1,018 |
| HRS 16 X 28 | 2,748 | 4,384 | 712 | 712 | 1,783 | 2,242 | 1,018 |
| HRS 16 X 30 | 2,748 | 4,690 | 712 | 712 | 1,783 | 2,242 | 1,018 |
| HRS 16 X 32 | 2,748 | 4,996 | 712 | 712 | 1,783 | 2,242 | 1,018 |
| HRS 18 X 18 | 3,054 | 2,854 | 712 | 712 | 4,690 | 3,619 | 1,783 |
| HRS 18 X 20 | 3,054 | 3,160 | 712 | 712 | 3,160 | 3,160 | 1,630 |
| HRS 18 X 22 | 3,054 | 3,466 | 712 | 712 | 3,160 | 3,007 | 1,477 |
| HRS 18 X 24 | 3,054 | 3,772 | 712 | 712 | 2,548 | 2,854 | 1,324 |
| HRS 18 X 26 | 3,054 | 4,078 | 712 | 712 | 2,089 | 2,548 | 1,324 |
| HRS 18 X 28 | 3,054 | 4,384 | 712 | 712 | 1,783 | 2,395 | 1,171 |
| HRS 18 X 30 | 3,054 | 4,690 | 712 | 712 | 2,089 | 2,395 | 1,171 |
| HRS 18 X 32 | 3,054 | 4,996 | 712 | 712 | 1,783 | 2,395 | 1,171 |
| HRS 18 X 34 | 3,054 | 5,302 | 712 | 712 | 1,783 | 2,395 | 1,171 |
| HRS 18 X 36 | 3,054 | 5,608 | 712 | 712 | 1,783 | 2,395 | 1,171 |
| HRS 20 X 20 | 3,360 | 3,160 | 712 | 712 | 4,690 | 3,772 | 1,936 |
| HRS 20 X 22 | 3,360 | 3,466 | 712 | 712 | 4,690 | 3,619 | 1,783 |
| HRS 20 X 24 | 3,360 | 3,772 | 712 | 712 | 4,690 | 3,160 | 1,630 |
| HRS 20 X 26 | 3,360 | 4,078 | 712 | 712 | 3,160 | 3,007 | 1,477 |
| HRS 20 X 28 | 3,360 | 4,384 | 712 | 712 | 3,160 | 2,854 | 1,324 |
| HRS 20 X 30 | 3,360 | 4,690 | 712 | 712 | 2,548 | 2,548 | 1,324 |
| HRS 20 X 32 | 3,360 | 4,996 | 712 | 712 | 2,548 | 2,548 | 1,324 |
H and W are the casing height and width. The other columns give the dimension printed under each section in the catalogue. Sections that are the same for every size: bag filter 865 (600 mm bags) or 559 (300 mm bags), panel filter 253, heating coil 406, humidifier 712, electric heater 559, silencer 865. All in mm, 50 mm panels. For quick selection only; other parameters need the selection programme.
08Downloads
Everything you need
to specify HEROS.
Specify HEROS for
your next project.
Share your drawings or requirements and our engineering team will come back with a tailored HEROS selection.
