Built for hot climates
Cooling capacities are stated at 35, 46 and 52 °C outdoor, with operation from 15 to 52 °C.
SPACE

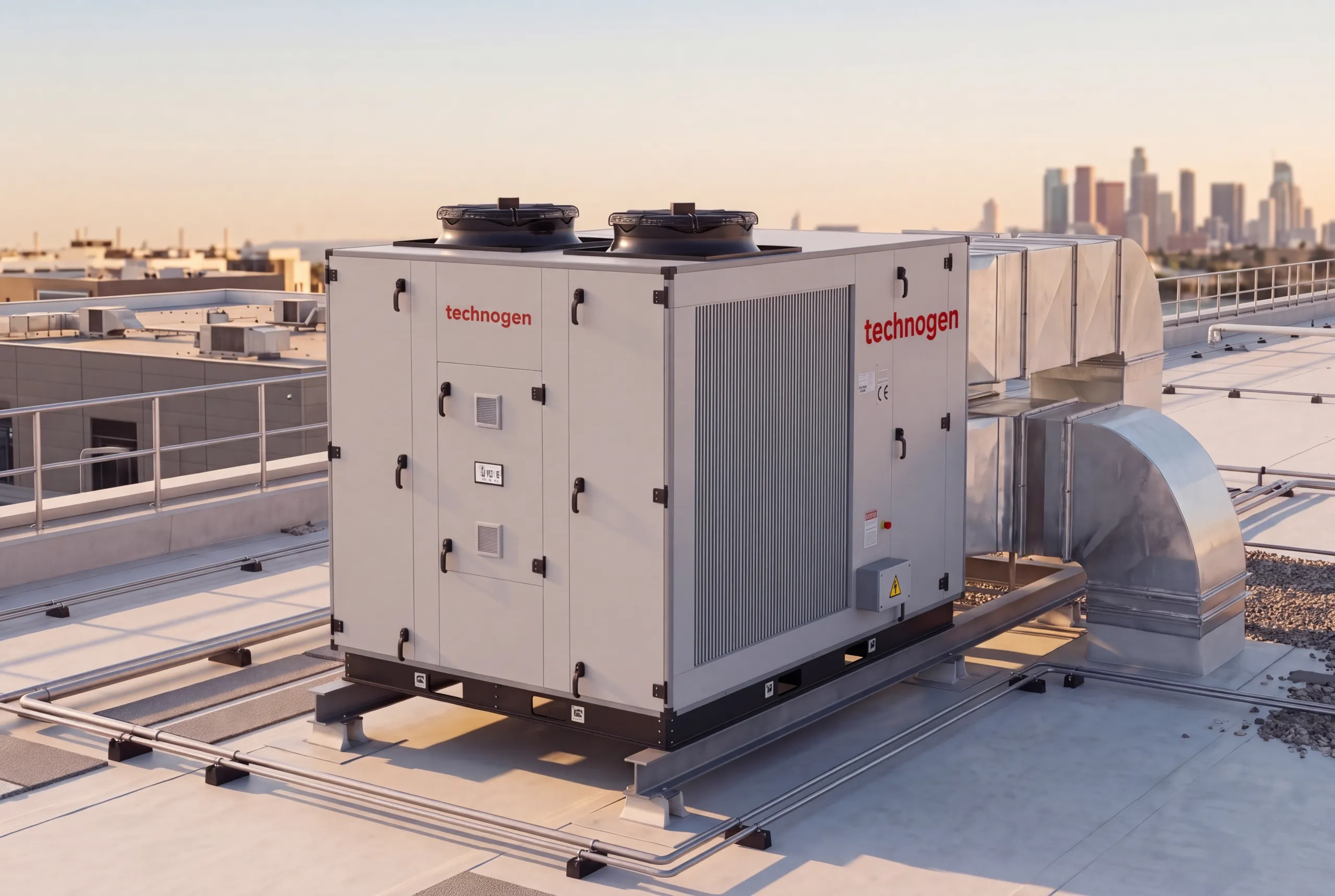

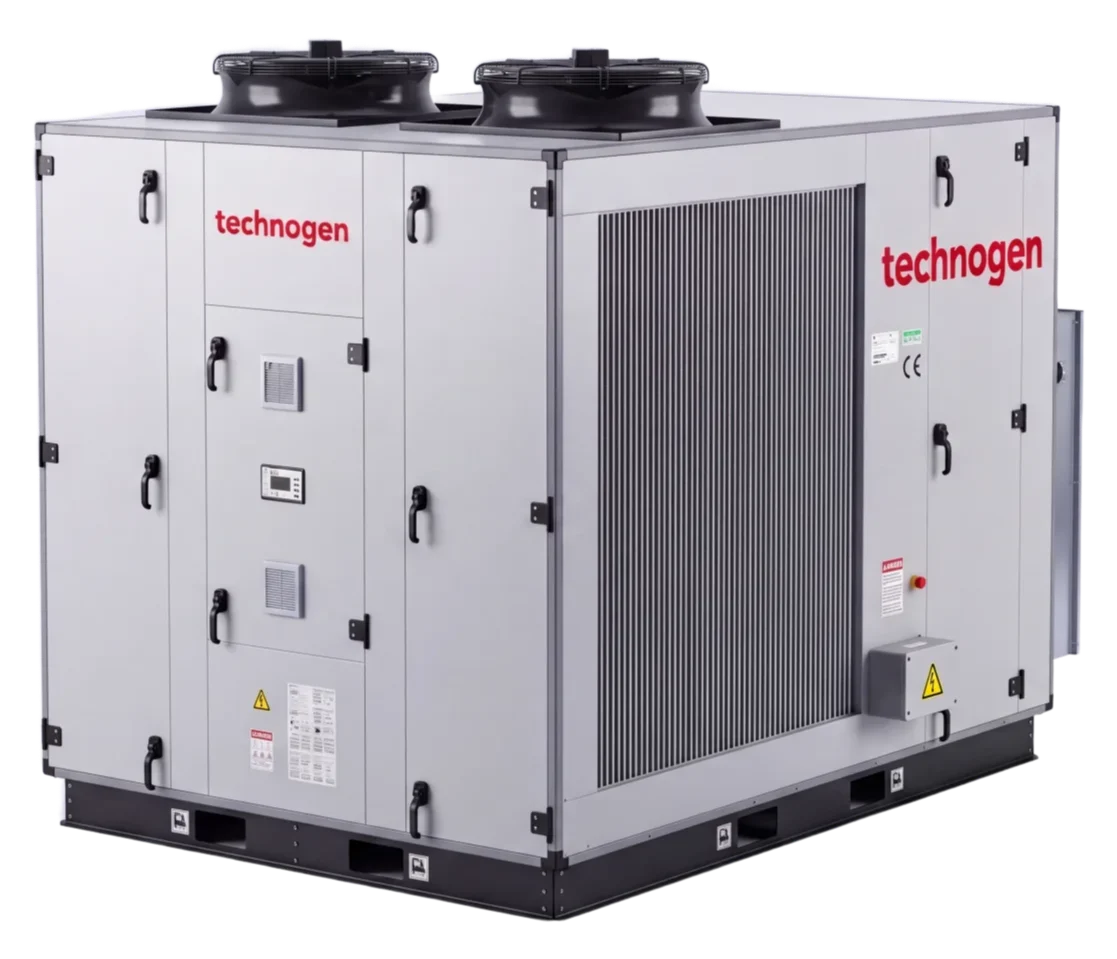

Rooftop packaged air conditioners for hot climates, with cooling capacities rated up to 52 °C outdoor.
- 14models
- 3,600–25,000m³/hairflow range
- 151kWmax. cooling at 35 °C
- 52°Cmax. outdoor temperature
01Overview
Cooling, heating and fresh air
in one rooftop unit.
SPACE is a packaged rooftop air conditioner with a direct-expansion refrigerant circuit. It cools the space through its DX coil, heats with the optional electric heater and brings in fresh air, then delivers the conditioned air through the duct system.
Developed for hot and tropical climates, it suits large commercial buildings, business centres, airports, restaurants, large stores, cinemas and theatres, conference halls, industrial facilities and logistics centres.
Scroll compressors
One, two or four scroll compressors: efficient, quiet and long-lived, with fewer moving parts.
Copper-aluminium coils
Copper-tube, aluminium-fin coils that keep their efficiency in high temperature and humidity.
Insulated casing
Electrostatic powder-coated galvanised steel casing with 50 mm insulation and easy service access.
Quick to commission
A compact packaged unit with fully automatic controls, ready to run once connected.
Options

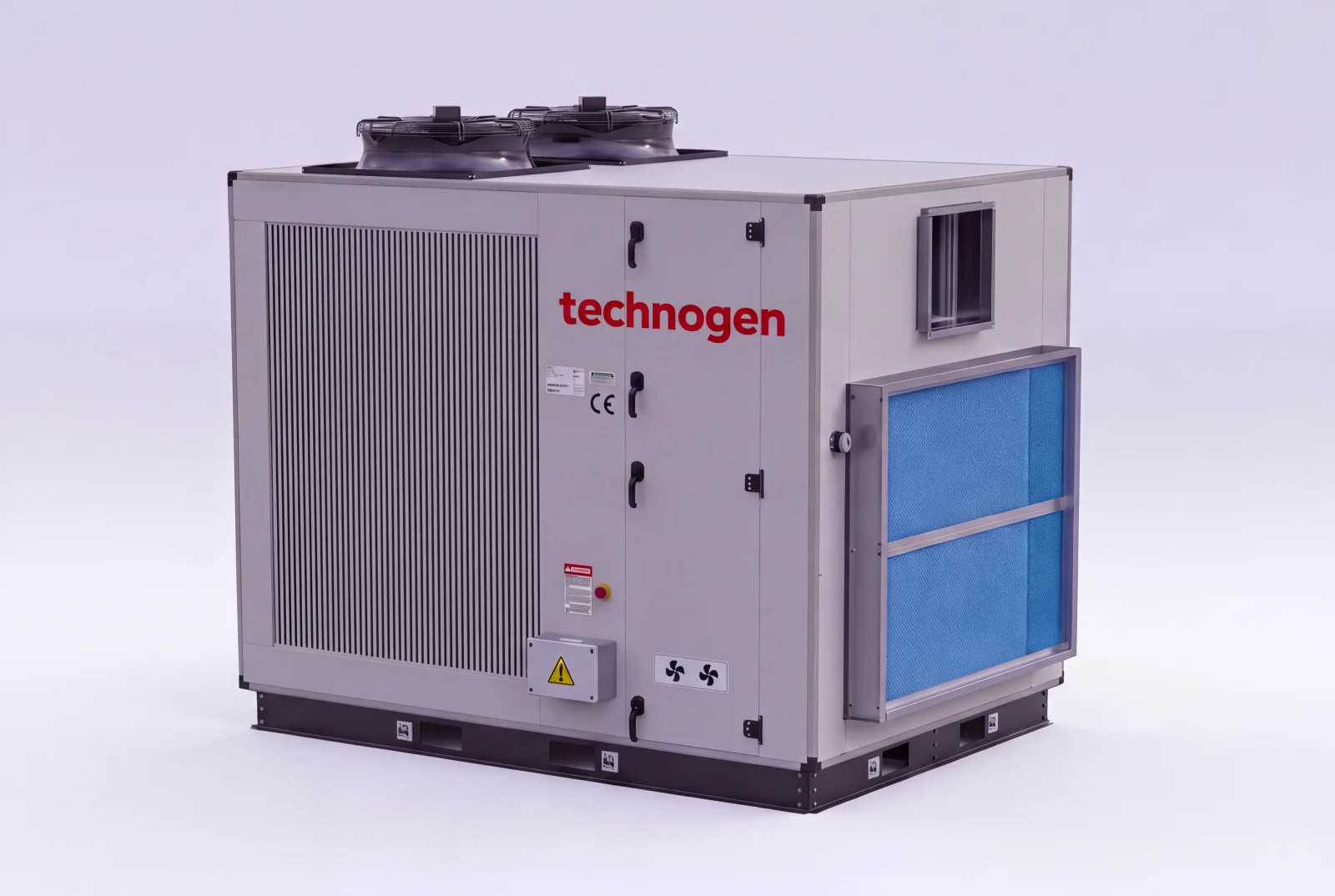

Economiser, bag filter section, electric heater, electronic expansion valve, CO₂ and filter sensors, enthalpy control and more.
02Range
Fourteen models,
18 to 151 kW.
Choose by airflow and by the cooling capacity at your design outdoor temperature. Every model delivers 300 Pa external static pressure.
Indoor conditions 26.7 °C DB / 19.4 °C WB. Data for every model is in the technical tables below.
03Specifications
Technical overview.
- Type
- Rooftop packaged air conditioner, direct expansion
- Models
- 14 models, TRTT-018 to TRTT-152
- Airflow
- 3,600 – 25,000 m³/h (≈ 2,120–14,710 CFM)
- External static pressure
- 300 Pa
- Cooling capacity
- 18 – 151 kW at 35 °C · 13 – 112 kW at 52 °C outdoor
- Operating range
- Outdoor 15 – 52 °C DB (cooling)
- Compressors
- 1, 2 or 4 scroll compressors
- Condenser fans
- Axial, 1 to 4 per unit
- Coils
- Copper tube, aluminium fins
- Casing
- Electrostatic powder-coated galvanised steel, 50 mm insulation
- Options
- Economiser, bag filter section, electric heater, electronic expansion valve, filter pressure sensor, CO₂ sensor, enthalpy control, condenser fan speed control, smoke detector
- Electrical
- 380–400 V / 3 ph / 50 Hz
04Model data
Figures from
the catalogue.
As published in the SPACE technical catalogue.
Performance
| Model | Airflowm³/h | Cooling 35 °CkW | Power input 35 °CkW | Cooling 46 °CkW | Power input 46 °CkW | Cooling 52 °CkW | Power input 52 °CkW | Compressors |
|---|---|---|---|---|---|---|---|---|
| TRTT-018 | 3,600 | 18 | 6 | – | 8 | 13 | 9 | 1 × scroll |
| TRTT-023 | 5,000 | 23 | 9 | 19 | 10 | 17 | 11 | 1 × scroll |
| TRTT-032 | 5,850 | 31 | 11 | 25 | 13 | 22 | 14 | 1 × scroll |
| TRTT-037 | 6,600 | 36 | 12 | 30 | 14 | 26 | 16 | 1 × scroll |
| TRTT-040 | 7,800 | 40 | 14 | 33 | 17 | 29 | 19 | 2 × scroll |
| TRTT-046 | 10,000 | 46 | 18 | 38 | 21 | 33 | 23 | 2 × scroll |
| TRTT-056 | 10,500 | 55 | 20 | 46 | 24 | 40 | 26 | 2 × scroll |
| TRTT-062 | 11,500 | 62 | 26 | 51 | 30 | 45 | 33 | 2 × scroll |
| TRTT-072 | 13,000 | 72 | 26 | 59 | 30 | 53 | 37 | 2 × scroll |
| TRTT-081 | 15,000 | 80 | 27 | 66 | 33 | 58 | 37 | 2 × scroll |
| TRTT-092 | 16,800 | 92 | 32 | 77 | 37 | 67 | 41 | 2 × scroll |
| TRTT-111 | 19,000 | 111 | 40 | 103 | 53 | 81 | 58 | 4 × scroll |
| TRTT-124 | 21,500 | 124 | 44 | 102 | 53 | 90 | 58 | 4 × scroll |
| TRTT-152 | 25,000 | 151 | 56 | 126 | 66 | 112 | 72 | 4 × scroll |
Outdoor dry-bulb temperatures of 35, 46 and 52 °C; indoor 26.7 °C DB / 19.4 °C WB. External static pressure 300 Pa. Power supply 380–400 V / 3 ph / 50 Hz.
Dimensions
| Model | Length (A)mm | Height (B)mm | Width (C)mm | Condenser fans | Weightkg |
|---|---|---|---|---|---|
| TRTT-018 | 1,600 | 1,100 | 1,400 | 1 | 400 |
| TRTT-023 | 1,600 | 1,400 | 1,400 | 1 | 415 |
| TRTT-032 | 1,400 | 1,400 | 1,600 | 1 | 472 |
| TRTT-037 | 1,900 | 1,500 | 1,700 | 1 | – |
| TRTT-040 | 1,900 | 1,600 | 1,750 | 2 | 610 |
| TRTT-046 | 2,100 | 1,900 | 1,800 | 2 | 670 |
| TRTT-056 | 2,250 | 1,900 | 1,850 | 2 | 740 |
| TRTT-062 | 2,300 | 1,900 | 1,900 | 2 | 820 |
| TRTT-072 | 2,400 | 1,950 | 2,000 | 2 | 940 |
| TRTT-081 | 2,600 | 1,950 | 2,100 | 2 | 970 |
| TRTT-092 | 2,700 | 2,100 | 2,250 | 2 | 1,200 |
| TRTT-111 | 3,500 | 2,200 | 2,350 | 4 | 1,350 |
| TRTT-124 | 3,500 | 2,300 | 2,450 | 4 | 1,450 |
| TRTT-152 | 3,500 | 2,300 | 2,550 | 4 | 1,750 |
A, B and C are the dimensions on the catalogue drawing.
Send us
your drawings.
Tell us the airflow, the application and any space limits. We will size the SPACE unit and send the performance data.
